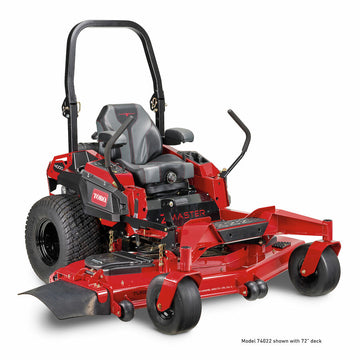

Toro 74020 4000 Series HDX Pro XL 60" 35 hp 999cc

Toro 74020 Parts

Toro 74020 4000 Series HDX Pro XL 60" 35 hp 999cc

Parts for the Toro 74020 4000 Series HDX Pro XL 60" 35 hp 999cc: every OEM part number by type, with the parts we stock ready to order online. Ships nationwide; free shipping on orders of $125 or more.

Serial numbers covered: 414307308 – 415399999; 418188200 – 418568099. Toro changes parts between serial ranges, so check the serial plate on your machine and look up your exact serial number before ordering.
357 OEM part numbers160 in stock to order onlineFree shipping $125+

Shop 74020 Parts

Part Type
All part types 160Blades 1Belts 2Filters 2Tires & Wheels 3Idlers & Pulleys 5Spindles 2Bearings & Bushings 16Cables 2Batteries & Chargers 1Seats 1Carburetor & Fuel 2Engine Parts 3Seals & Gaskets 5Electrical & Switches 6Drive & Hydraulics 8Handles & Controls 6Deck & Body Parts 18Hardware 67Oil & Lubricants 1Decals 4Maintenance Kits 1
Type
Belt 2Sheave / Drive Pulley 2Flat Idler 2
Toro 140-1240 Blade 20.50 High Flow

BLADE 20.50 HIGH FLOW 140-1240
Toro 140-7994 Belt-V

BELT-V 140-7994
Genuine Toro OEM part

BELT-V 126-9835
Toro 144-6603 Kit, Filter (1P)

KIT, FILTER (1P) 144-6603
Genuine Toro OEM part

KIT, FILTER PLUG (1P) 144-6604
Toro 147-0295-01 Caster 4000 Series 15 Inch

TORO CASTER 4000 SERIES 15 INCH 147-0295-01
Toro 145-1919 ASM-Wheel Brgs Axle 15X6.5-6 (1P)

ASM-WHEEL BRGS AXLE 15X6.5-6 (1P) 145-1919
Toro 145-1923 Wheel And Tire ASM (1P)

WHEEL AND TIRE ASM (1P) 145-1923
Toro 140-4964 Flat Idler

TORO FLAT IDLER 140-4964
Toro 132-9424 Pulley-Idler, Flat (1P)

PULLEY-IDLER, FLAT (1P) 132-9424
Toro 138-6059 Sheave-Drive, Blade (2PX)

SHEAVE-DRIVE, BLADE (2PX) 138-6059
Toro 139-6702 Sheave, W/hub (1P)

SHEAVE, W/HUB (1P) 139-6702
Toro 144-6602 Kit, Fan And Pulley (1P)

KIT, FAN AND PULLEY (1P) 144-6602
Toro 137-9780 Spindle ASM (2PT)

SPINDLE ASM (2PT) 137-9780
Toro 138-6045 Shaft-Spindle (2PT)

SHAFT-SPINDLE (2PT) 138-6045
Toro 139-5872 Bearing-Flange (3BW)

BEARING-FLANGE (3BW) 139-5872
Toro 138-2573 Bushing-Flange (3BW)

BUSHING-FLANGE (3BW) 138-2573
Toro 46-6560 Bushing (8LB)

BUSHING (8LB) 46-6560
Toro 139-8061 Bushing, Idler (1P)

BUSHING, IDLER (1P) 139-8061
Toro 139-6690 Bushing, Idler Pivot (1P)

BUSHING, IDLER PIVOT (1P) 139-6690
Toro 137-9787 Bushing-Hex (2PX)

BUSHING-HEX (2PX) 137-9787
Toro 140-1179 ASM-Deck Strut W/ Bushings (1P)

ASM-DECK STRUT W/ BUSHINGS (1P) 140-1179
Genuine Toro OEM part

BUSHING-SLEEVE (2PX) 116-4976
Genuine Toro OEM part

BUSHING-SLEEVE (4DI) 1-413152
Genuine Toro OEM part

BUSHING (3BW) 126-8909
Genuine Toro OEM part

BUSHING-RUBBER, SUSPENSION (3BW) 126-8360
Genuine Toro OEM part

BUSHING-FLANGE (2PX) 109-8054
Genuine Toro OEM part

BEARING-SPHERICAL (3BW) 126-5820
Genuine Toro OEM part

BEARING-BALL (4DW) 109-3678
Genuine Toro OEM part

BEARING-CONE, TAPER (6HU) 1-633585
Genuine Toro OEM part

BEARING-BALL (4DW) 116-0720
Toro 144-2647 Cable-Choke Control (1P)

CABLE-CHOKE CONTROL (1P) 144-2647
Toro 110-5727 Throttle Control ASM (2PX)

THROTTLE CONTROL ASM (2PX) 110-5727
Genuine Toro OEM part

BATTERY (7JJ) 104-8162
Toro 144-2632 Seat ASM-Suspension (1P)

SEAT ASM-SUSPENSION (1P) 144-2632
Toro 137-4119 Cap-Fuel, Ratcheting (4DW)

CAP-FUEL, RATCHETING (4DW) 137-4119
Toro 139-8058 Gauge-Fuel (1P)

GAUGE-FUEL (1P) 139-8058
Toro 147-4631-03 turbo force 60 inch plate

turbo force 60 inch plate 147-4631-03
Toro 140-8002 Muffler (1P)

MUFFLER (1P) 140-8002
Genuine Toro OEM part

ENGINE OIL DRAIN HOSE ASM (6HU) 116-4924
Toro 145-3678 Seal, Lip-Brake (1P)

SEAL, LIP-BRAKE (1P) 145-3678
Toro 237-42 O-Ring (7JH)

O-RING (7JH) 237-42
Toro 133-9269 Grommet-Fuel (3AA)

GROMMET-FUEL (3AA) 133-9269
Toro 145-3683 Kit-Overhaul Seal (1P)

KIT-OVERHAUL SEAL (1P) 145-3683
Genuine Toro OEM part

SEAL-CASTER (4DW) 103-0063
Toro 63-8360 Key-Ignition (W/shield)

KEY-IGNITION (W/SHIELD) 63-8360
Toro 82-2190 Switch-Bail

SWITCH-BAIL 82-2190
Toro 110-6765 Switch-Single Pole NO

SWITCH-SINGLE POLE NO 110-6765

Toro 74020 OEM Parts List by Type

or type it:
Find the serial number on the plate on your machine, pick the range it falls in, and the list below shows only the parts that fit it.

Every part number on the Toro 74020 parts list. Part numbers with a Shop button are in stock online; for any other number, search it at the top of the page or ask us and we'll order it.

74020 Blades
Part #DescriptionQtySerials
140-124020.5 INCH HI-FLOW BLADE3allShop
109-9220BLADE SCREW3allShop
74020 Belts
Part #DescriptionQtySerials
126-9835TRACTION DRIVE V-BELT FOR RECYCLER/SUPER RECYCLER MOWER1418188200 – 418568099Shop
140-7994TRACTION/HYDRO DRIVE V-BELT1414307308 – 415399999Shop
163-7384BELT-5V [180.4]1all
74020 Filters
Part #DescriptionQtySerials
144-6603FILTER KIT1allShop
144-6604FILTER PLUG KIT1allShop
161-6744FUEL PICKUP WITH FILTER ASM1414307308 – 415399999
74020 Tires & Wheels
Part #DescriptionQtySerials
147-0295-0115 INCH CASTER FORK1allShop
139-2564LUG NUT8allShop
145-1923WHEEL AND TIRE ASM2allShop
98-5967WHEEL SPACER1allShop
126-803326 X 12-12 6 PLY REAR RIDING MOWER TIRE ONLY1all
144-65944 BOLT HUB1all
126-7796CASTER FORK AXEL ASSEMBLY1all
145-1945WHEEL 12X8.5 2.501all
74020 Idlers & Pulleys
Part #DescriptionQtySerials
138-60597.23 BLADE DRIVE SHEAVE3allShop
144-6602FAN AND PULLEY KIT1allShop
132-9424FLAT IDLER PULLEY2allShop
140-4964FLAT IDLER PULLEY1allShop
139-8061IDLER BUSHING2allShop
139-6690IDLER PIVOT BUSHING1allShop
1-653331IDLER SPRING1allShop
139-6702SHEAVE WITH HUB1allShop
139-1087IDLER ARM ASSEMBLY1all
144-2671IDLER ARM ASSEMBLY1all
139-1086IDLER ARM ASSEMBLY1all
139-8060IDLER BUSHING1all
74020 Spindles
Part #DescriptionQtySerials
137-9780SPINDLE ASSEMBLY3allShop
138-6045SPINDLE SHAFT3allShop
74020 Bearings & Bushings
Part #DescriptionQtySerials
46-65600.62 INCH X 0.56 INCH X 0.362 INCH FLANGED BUSHING4allShop
109-3678BALL BEARING4allShop
116-0720BALL BEARING2allShop
145-3660BEARING SPACER2allShop
138-6042BEARING SPACER1allShop
1-633585BEARING-CONE, TAPER2allShop
126-8909BUSHING2allShop
126-8360BUSHING-RUBBER, SUSPENSION4allShop
140-1179DECK STRUT ASSEMBLY WITH BUSHINGS1418188200 – 418568099Shop
139-5872FLANGE BEARING4allShop
138-2573FLANGE BUSHING2allShop
109-8054FLANGE BUSHING2allShop
137-9787HEX BUSHING3allShop
1-413152SLEEVE BUSHING2allShop
116-4976SLEEVE BUSHING2allShop
126-5820SPHERICAL BEARING2allShop
161-6805ASM-DECK STRUT W/BUSHINGS1414307308 – 415399999
161-9819BUSHING-DECK LIFT4all
1-633584CUP BEARING2all
74020 Cables
Part #DescriptionQtySerials
144-2647CHOKE CONTROL CABLE1allShop
110-5727THROTTLE CONTROL ASSEMBLY1allShop
74020 Batteries & Chargers
Part #DescriptionQtySerials
104-8162RIDING MOWER BATTERY1allShop
126-8876INSULATOR-BATTERY1all
74020 Seats
Part #DescriptionQtySerials
145-3659SEAT COVER - BUTTON1allShop
144-2632SUSPENSION SEAT ASSEMBLY1allShop
126-8560KIT-SEAT BELT1all
140-1165-03SEAT PAN1all
116-5655SEAT TRACK SET [110776-00-OA59]1all
74020 Carburetor & Fuel
Part #DescriptionQtySerials
139-8058FUEL GAUGE1allShop
137-4119RATCHETING FUEL CAP1allShop
140-4956FUEL HOSE1all
109-0298FUEL HOSE1all
114-3766FUEL HOSE1all
116-4344FUEL HOSE1all
139-8068FUEL HOSE ASSEMBLY1all
163-4138FUEL TANK ASM1all
1-603770FUEL VALVE1all
140-4957FUEL VENT ASSEMBLY1all
138-3152HOSE-FUEL2all
147-2436-03REAR TANK RETAINER PLATE1all
112-2334THROTTLE LEVER1all
74020 Engine Parts
Part #DescriptionQtySerials
116-4924ENGINE OIL DRAIN HOSE ASM1allShop
140-8002MUFFLER (KAWASAKI 921)1allShop
147-4631-03TURBO FORCE PLATE - 60 INCH1allShop
147-7844-01BAFFLE [TURBO FORCE 60/72,WELDED ASM, R]1414307308 – 415399999
163-7464LH EXHAUST GUARD ASM1414307308 – 415399999
147-2408-03MUFFLER GUARD ASSEMBLY1418188200 – 418568099
163-7461REAR MUFFLER GUARD ASM1414307308 – 415399999
163-7467RH EXHAUST GUARD ASM1414307308 – 415399999
5108VALVE1all
74020 Seals & Gaskets
Part #DescriptionQtySerials
237-420.468 INCH X 0.078 INCH O-RING1allShop
145-3678BRAKE LIP SEAL1allShop
133-9269FUEL GROMMET1allShop
145-3683OVERHAUL SEAL KIT1allShop
103-0063SEAL-CASTER2allShop
1-543286GROMMET1all
74020 Electrical & Switches
Part #DescriptionQtySerials
140-495590 DEGREE ELBOW CONNECTOR1418188200 – 418568099Shop
82-2190BAIL SWITCH1allShop
63-8360IGNITION KEY1allShop
139-6368IGNITION SWITCH1allShop
110-6765IGNITION SWITCH3allShop
116-5609MODULE ASM1allShop
32180-176COVER-BLOCK, FUSE [12F GEP]1all
121-8867FUSE-MINI BLADE, 15 AMP1all
121-8869FUSE-MINI BLADE, 25 AMP1all
1-603511IGNITION KEY1all
1-543393INSULATOR-SOLENOID1all
1-807259KEY1all
140-4994-01LIGHT BRACKET - RED1all
121-8868MINI BLADE FUSE - 20 AMP1all
126-3991RELAY-MICRO1all
139-6745SWITCH PLATE1all
139-8078WIRE HARNESS1418188200 – 418568099
147-2363WIRE HARNESS FOR Z MASTER MOWER1414307308 – 415399999
137-4100Z-MASTER IGNITION SWITCH1all
74020 Drive & Hydraulics
Part #DescriptionQtySerials
116-1620CLUTCH KIT1allShop
109-6919CLUTCH WASHER1allShop
126-9057FITTING-90 DEG2418188200 – 418568099Shop
140-1225HYDRAULIC HOSE ASSEMBLY1allShop
119-9908HYDRAULIC RESERVOIR ASM1allShop
144-0351LH BRAKE ROD ASM1418188200 – 418568099Shop
138-6076LH TRANSAXLE ASM1allShop
144-0352RIGHT HAND BRAKE ROD ASSEMBLY1allShop
138-6077RIGHT HAND TRANSAXLE ASSEMBLY (ZT5400)1allShop
144-2658BRAKE ASSEMBLY1all
139-6742BRAKE BRACKET1all
139-6726BRAKE LEVER ASSEMBLY WITH GRIP (SERVICE)1all
144-6566BRAKE LINK ASSEMBLY1all
140-1190CLUTCH ANCHOR1all
144-6601FITTING-5/8 BEADED, 7/8 SAE1all
163-7304FITTING-ELBOW, 902414307308 – 415399999
116-4630FITTING-ORIFICE, STRAIGHT1all
163-7303FITTING-TEE1all
104-2490HOSE CLAMP2all
2412-98HOSE CLAMP4all
139-6717-01HYDRO PLATE1all
140-4951LEFT HAND BRAKE ROD1418188200 – 418568099
140-4950RIGHT HAND BRAKE ROD1all
139-6741ROD FITTING1all
120-2234TEE FITTING1all
139-8067VENT HOSE ASSEMBLY1all
74020 Handles & Controls
Part #DescriptionQtySerials
142-6851DAMPER2allShop
109-5668GRIP-LEVER, CONTROL1allShop
139-6743HANDLE PIVOT1allShop
1-603175KNOB-BALL1allShop
147-2391LEFT HAND (LH) HANDLE ASSEMBLY1allShop
132-4749LEVER GRIP1allShop
147-2390RIGHT HAND (RH) HANDLE ASSEMBLY1allShop
145-5798ARM CONTROL ASSEMBLY1all
147-2389CONTROL ARM1all
140-4949CONTROL LINK1all
109-1092KNOB1414307308 – 415399999
116-8911KNOB-ADJUSTER1all
147-5047LEFT HAND (LH) MOTION CONTROL ASSEMBLY1all
147-7949PEDAL-FOOT LIFT [MACH]1all
147-5046RIGHT HAND (RH) MOTION CONTROL ASSEMBLY1all
74020 Deck & Body Parts
Part #DescriptionQtySerials
1-603299ANTI-SCALP & WEAR BAR KIT4allShop
137-9784BOTTOM GUARD3allShop
109-9233BUMPER-PUSH-IN, RUBBER2allShop
109-3320CAP-RESERVOIR, HYD1allShop
139-8050-03FRONT DECK LIFT SHAFT ASSEMBLY1allShop
106-3253-01FRONT HINGE PLATE1allShop
103-1330GUARD-BEARING, TOP3allShop
103-2768GUARD-SEAL2allShop
116-2887GUSSET-LIFT, DECK4allShop
145-3643LEFT HAND (LH) SEAT BACK COVER1allShop
109-6938LEFT HAND BELT COVER1418188200 – 418568099Shop
117-2382PLUG-PLASTIC[PA66, FIR TREE]6allShop
116-0094RIGHT HAND BELT COVER1418188200 – 418568099Shop
144-2635RUBBER DEFLECTOR ASSEMBLY1allShop
145-1919SEMI PNEUMATIC ASSEMBLY 15 X 6.50-61allShop
133-2129SHAFTING TUBE2allShop
145-8475-03TRANSPORT LOCK PLATE1allShop
109-6982WIREFORM-COVER2allShop
147-4954-01BACKER PLATE1all
114-5842-01BAFFLE1414307308 – 415399999
131-8834BUMPER2all
147-7852BUMPER-FRONT1all
109-5337BUMPER-ROPS2all
135-0505BUMPER-SEAT4all
140-4975-03DECK LIFT SHAFT ASSEMBLY1all
161-3464DEFLECTOR-DECK, RUBBER [TEXTURED]1all
106-3216-01DISCHARGE BAFFLE1414307308 – 415399999
107-8541-01DISCHARGE BAFFLE1418188200 – 418568099
138-6098FLOOR PAN ASSEMBLY1all
163-4125SPFRAME ASM-XL 60 [4000 SERVICE]1414307308 – 415399999
147-7836FRAME ASM-XL 60 [4000 SERVICE]1418188200 – 418568099
145-6964-01GUARD-REAR, LH1all
147-1672INPUT SHAFT KIT1all
140-7996-03LEFT HAND (LH) FRONT COVER PLATE1all
117-7816LH ASSEMBLY WITH ASM [601414307308 – 415399999
126-4639-03LIFT LINK1all
161-9818-03LINK-LIFT, DECK [BLACK]4all
117-3824PLASTIC PLUG1414307308 – 415399999
161-9815-01PLATE-DEFLECTOR MOUNT [BULL HORNS, RED]1all
147-4987-03PLATE-TANK RETAINER, FRONT [BLACK]1all
116-0053PLUG CAP2all
144-2642POD SUPPORT ROD2all
147-6259REAR GUARD ASSEMBLY1all
108-4059-01REAR HINGE PLATE1all
117-7815RH ASSEMBLY WITH ASM [601414307308 – 415399999
140-7998-03RIGHT HAND FRONT PLATE COVER1all
145-7012RIGHT HAND REAR GUARD ASSEMBLY1all
139-8062ROLL OVER PROTECTION SYSTEM (ROPS) ASSEMBLY (SERVICE)1all
140-4992STEP1all
126-4781-03STEP-DECK1all
140-1221-01TOP REAR GUARD1all
74020 Hardware
Part #DescriptionQtySerials
98-5975BELLEVILLE WASHER4allShop
119-8925BELLEVILLE WASHER1allShop
3231-27CARRIAGE SCREW4allShop
3231-7CARRIAGE SCREW2allShop
3230-22CARRIAGE SCREW8allShop
3231-5CARRIAGE SCREW4allShop
3231-42CARRIAGE SCREW1allShop
126-9181CLEVIS PIN2allShop
116-6317EXTENSION SPRING1allShop
116-0886EXTENSION SPRING1allShop
109-7124EXTENSION SPRING2allShop
3256-68FLAT WASHER2allShop
3256-4FLAT WASHER1allShop
3256-3FLAT WASHER1allShop
126-7296FRICTION WASHER1allShop
104-8301HEX FLANGE (HF) NUT34418188200 – 418568099Shop
104-8300HEX FLANGE (HF) NUT2418188200 – 418568099Shop
323-23HEX HEAD (HH) SCREW2allShop
322-50HEX HEAD (HH) SCREW1allShop
323-7HEX HEAD (HH) SCREW4allShop
108-5388HEX HEAD (HH) SCREW1418188200 – 418568099Shop
126-5389HEX HEAD FLANGE (HHF) SCREW1allShop
3234-42HEX HEAD FLANGE (HHF) SCREW1allShop
3234-29HEX HEAD FLANGE (HHF) SCREW1allShop
116-0780HEX HEAD FLANGE (HHF) SHOULDER SCREW1allShop
116-7306HEX NUT3allShop
126-4299HEX SOCKET BUTTON HEAD (HSBH) SCREW2allShop
136-9028HEX WASHER HEAD (HWH) SHOULDER BOLT1allShop
32144-70HEX WASHER HEAD THREAD FORMING (HWHTF) SCREW2allShop
99-5107LOCK NUT1418188200 – 418568099Shop
109-6658NUT-FLANGE, NI2allShop
138-8491PIN CLIP2allShop
126-5401PIN-HOC1418188200 – 418568099Shop
117-1198PIVOT BOLT1allShop
115-5099PIVOT BOLT2allShop
9266934SCREW1allShop
137-4795SCREW1allShop
138-9753SCREW6allShop
120-7950SCREW8allShop
3230-3SCREW-CARR [.312-18X1.250,GR5,YZ]1allShop
119-4162SCREW-CARR[3/8-16 X 1.25,GR5,CZ]1414307308 – 415399999Shop
109-9761SCREW-HH, W/LOCTITE1allShop
100-1668SCREW-HHF2allShop
110-5052SCREW-HHF4allShop
132-4729SHORT ANCHOR SPRING1allShop
92-7674SHOULDER BOLT1allShop
130-0742SHOULDER BOLT4allShop
126-4424SHOULDER SCREW4allShop
116-2670SHOULDER SCREW2allShop
105-4622SPACER1allShop
104-7658SPACER1allShop
108-6544SPACER4allShop
133-2128SPACER TUBE2allShop
43-0940SPACER [3/8 X 7/8 X 10 GA STL, CZ]4allShop
126-8195SPRING-RETURN, NEUTRAL1allShop
95-1726TAPTITE SCREW2414307308 – 415399999Shop
108-4052TORSION SPRING1allShop
103-2802WASHER3allShop
2844WASHER1allShop
1-213069WASHER3allShop
147-5048ACTUATOR SPACER1all
161-4505BOLT-SHOULDER [ROPS PIVOT]2414307308 – 415399999
137-3061CARRIAGE BOLT2414307308 – 415399999
1-807513CARRIAGE BOLT2all
3231-29CARRIAGE SCREW1all
3230-18CARRIAGE SCREW4all
3230-23CARRIAGE SCREW2418188200 – 418568099
126-5523CLIP3all
32180-177CLIP-MOUNTING [GEP]1418188200 – 418568099
106-3248-03DISCHARGE STRAP1all
125-4684EXTENSION SPRING1all
3256-22FLAT WASHER2all
3256-45FLAT WASHER2all
140-2146HEIGHT OF CUT (HOC) PIN ASSEMBLY1414307308 – 415399999
139-1689HEX FLANGE (HF) NUT1414307308 – 415399999
119-4041HEX FLANGE (HF) NUT2414307308 – 415399999
32128-33HEX FLANGE (HF) NUT2all
104-7201HEX FLANGE (HF) NUT2all
37-8771HEX FLANGE (HF) SHOULDER BOLT2all
321-4HEX HEAD (HH) SCREW2all
33114-020HEX HEAD (HH) SCREW1all
325-13HEX HEAD (HH) SCREW4all
3234-18HEX HEAD FLANGE (HHF) SCREW4all
3234-38HEX HEAD FLANGE (HHF) SCREW8all
121-4600HEX NUT4all
3220-3HJ NUT1all
3296-2LOCK NUT2all
112-3306NUT2all
119-4042NUT-HF, NI32414307308 – 415399999
119-1415PIN-COTTER, LOCKING4all
33094-00PLAIN WASHER1all
110-0824R-CLAMP1all
161-4477ROPS PIN ASM2all
3229-28SCREW-CARR2all
161-6360SCREW-HF [3/8-16 X 7.50, GR8, CZ]1414307308 – 415399999
87-6620SCREW-TPH THD FORM[1/4-20 X 5/8, BZ]4all
126-6267SCREW-TTH4all
126-6268SCREW-TTH6all
94-7582SHOULDER BOLT1414307308 – 415399999
126-9209SHOULDER BOLT2418188200 – 418568099
135-2015SHOULDER SCREW2all
144-6595SLOTTED NUT1all
5-0652SPACER4all
142-8478SPACER, ANTI-ROTATION1all
103-3051SPACER-NUT1all
1-603610SPRING WASHER2all
1-303334SPRING WASHER4all
109-9505SPRING WASHER4all
144-2645SPRING-COMPRESSION1all
142-8697STRAP, BUNGEE1all
130-8451TRIFOLD RIVET2all
1-373034WASHER4all
100-4852WASHER-HARDENED1414307308 – 415399999
74020 Oil & Lubricants
Part #DescriptionQtySerials
144-0375GREASE CAP2allShop
74020 Decals
Part #DescriptionQtySerials
99-8936DECAL - MOTION CONTROL1allShop
139-6699HEIGHT OF CUT (HOC) DECAL1allShop
139-1149LEFT HAND (LH) DECAL - 4000 SERIES, LEFT HAND (LH)1allShop
140-7987RIGHT HAND DECAL (4000 SERIES)1allShop
127-0326ANTI-SCALP DECAL1all
109-6035BELT ROUTING DECAL1all
144-2687BELT ROUTING DECAL1all
144-0405CONTROL PANEL DECAL1all
126-8383DANGER DECAL1all
117-3848DANGER DECAL2418188200 – 418568099
145-6978DECAL1all
115-9625DECAL - PARKING BRAKE1all
133-8062DECAL - SPARK ARRESTOR1all
105-8278DECAL [TORO LOGO]1all
145-8411DECAL-ADJUSTABLE BAFFLE1414307308 – 415399999
161-6620DECAL-DANGER, DECK [GAS]2414307308 – 415399999
126-9939DECAL-FILL, FUEL1all
147-7364DECAL-HITCH1all
116-8283DECAL-TORQUE, BOLT1all
163-4182SPDECK ASM W/DECALS [60, 4000, SERVICE]1414307308 – 415399999
147-4997DECK DECAL ASM [60, 4000, SERVICE]1418188200 – 418568099
140-4866LEFT HAND (LH) COVER ASSEMBLY WITH DECAL1all
140-4867RIGHT HAND COVER ASSEMBLY WITH DECAL1all
145-6979RIGHT HAND HDX PRO XL DECAL1all
144-2669SERVICE AID DECAL1all
140-4995TOEBOARD WITH DECAL1all
126-4363WARNING DECAL2all
107-3069WARNING DECAL1all
106-5517WARNING DECAL2all
74020 Maintenance Kits
Part #DescriptionQtySerials
145-3641ARMREST KIT1allShop
74020 Other Parts
Part #DescriptionQtySerials
103-3895DIODE1allShop
140-8019RIGHT HAND CUPHOLDER1allShop
140-7955USB POWER PORT1allShop
145-3642ARMREST PADS1all
126-8559BELLOWS-SEAT1all
145-1287-01CONSOLE-LH [RED]1all
140-7968CUP HOLDER1all
140-7950FIXED SEAT FLOORMAT1all
140-7979LEFT HAND (LH) SIDE POD1all
144-6551-01RIGHT HAND CONSOLE (RED)1all
140-7980RIGHT HAND SIDE POD1all
130-0733RUBBER PAD2all
126-5434SWIVEL1all
163-7463TAPE-HEAT1414307308 – 415399999
163-7460TAPE-HEAT1414307308 – 415399999
163-7466TAPE-HEAT1414307308 – 415399999

Shop all Toro parts · Parts for other models · Look up by serial number

Toro is a trademark of its owner. Outdoor Power LLC sells genuine OEM and quality replacement parts.
