Grasshopper 322D Parts

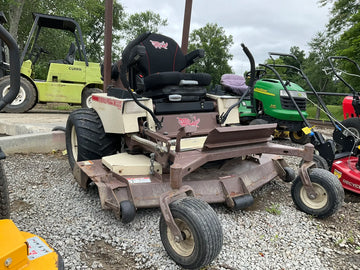

Grasshopper 322D Mid-Mount Mower
Parts for the Grasshopper 322D Mid-Mount Mower: every OEM part number by type, with the parts we stock ready to order online. Ships nationwide; free shipping on orders of $125 or more.
Serial numbers covered: 5800000 – 5899999.
Grasshopper changes parts between serial ranges, so check the serial plate on your machine and
look up your exact serial number before ordering.
771 OEM part numbers43 in stock to order onlineFree shipping $125+
Shop 322D Parts
Grasshopper 322D OEM Parts List by Type
Every part number on the Grasshopper 322D parts list. Part numbers with a Shop button are in stock online; for any other number, search it at the top of the page or ask us and we'll order it.
322D Blades
| Part # | Description | Qty | Serials | |
|---|---|---|---|---|
| 320240 | BLADE-18 HIGH-LOW MULCHING | 1 | all | Shop |
| 320245 | HIGH-LIFT NOTCH BLADE 21" | 1 | all | Shop |
| 320246 | 21" BLADE EXTREME HIGH-LIFT | 1 | all | |
| 320318 | 21" LASER EDGE BLADE | 1 | all | |
| 320242 | 21" MEDIUM LIFT BLADE | 1 | all | |
| 320253 | 25 HIGH-LIFT NOTCH BLADE | 1 | all | |
| KU1345 | 5 BLADE FAN | 1 | all | |
| 320244 | BLADE CONTOUR 21" | 1 | all | |
| 623764 | BLADE SPINDLE ASSEMBLY | 1 | all | |
| 623765 | BLADE SPINDLE ASSEMBLY | 1 | all | |
| 623763 | BLADE SPINDLE ASSEMBLY | 1 | all | |
| 623758 | BLADE SPINDLE ASSY - M1 REAR | 1 | all | |
| 623700 | BLADE SPINDLE ASSY 5" - 5.75 | 1 | all | |
| 623768 | BLADE SPINDLE ASSY M172R | 1 | all | |
| 320236 | BLADE-18 MEDIUM LIFT | 1 | all | |
| 320247 | BLADE-21 HIGH-LOW MULCHING | 1 | all | |
| 320322 | BLADE-21 SHREDDER | 1 | all | |
| 320252 | BLADE-25 CONTOUR | 1 | all | |
| 320254 | BLADE-25 EXTREME HIGH-LIFT | 1 | all | |
| 320255 | BLADE-25 HIGH-LOW MULCHING | 1 | all | |
| 320319 | BLADE-25 LASER EDGE - HLN | 1 | all | |
| 320250 | BLADE-25 MEDIUM LIFT | 1 | all | |
| 320323 | BLADE-25 SHREDDER | 1 | all | |
| 855307 | SHROUD - BLADE-M241 LT WELD | 1 | all | |
| 855306 | SHROUD - BLADE-M241 RT WELD | 1 | all | |
| 855311 | SHROUD - BLADE-M252 CTR WELD | 1 | all | |
| 855313 | SHROUD - BLADE-M252 LT WELD | 1 | all | |
| 855312 | SHROUD - BLADE-M252 RT WELD | 1 | all |
322D Belts
322D Filters
| Part # | Description | Qty | Serials | |
|---|---|---|---|---|
| 100936 | AIR FILTER OUTER HD | 1 | all | Shop |
| 100937 | FILTER - AIR INNER - HD | 1 | all | Shop |
| 101000 | FILTER - FUEL KUBOTA | 1 | all | Shop |
| 101004 | FUEL FILTER KUBOTA | 1 | all | Shop |
| 101005 | FUEL FILTER PRE-FILTER KUBOTA | 1 | all | Shop |
| 100800 | OIL FILTER KUBOTA | 1 | all | Shop |
| 101024 | BASE - FILTER - M1 SERIES | 1 | all | |
| 100855 | FILTER-OIL TRANSAXLE HI-EFFIC. | 1 | all | |
| KU1269 | FUEL FILTER ASSEMBLY | 1 | all | |
| KU1273 | FUEL FILTER ASSEMBLY | 1 | all | |
| KU1263 | FUEL FILTER CUP ASSEMBLY | 1 | all | |
| 366553 | STRAINER - IN-LINE | 1 | all |
322D Spark Plugs & Ignition
| Part # | Description | Qty | Serials | |
|---|---|---|---|---|
| KU1173 | GLOW PLUG | 1 | all |
322D Tires & Wheels
| Part # | Description | Qty | Serials | |
|---|---|---|---|---|
| 483440 | WHEEL - 24" TIRE | 1 | all | Shop |
| 484230 | WHEEL - ANTI-SCALP CENTER HUB | 1 | all | Shop |
| 603975 | WHEEL&TIRE ASSY REAR W/DP BRGS | 1 | all | Shop |
| 609010 | HUB PULLER - G2 | 1 | all | |
| 482487 | TIRE - BAR | 1 | all | |
| 482355 | TIRE - RIB | 1 | all | |
| 482485 | TIRE - TURF | 1 | all | |
| 482486 | TIRE - TURF | 1 | all | |
| KU1409 | VALVE STEM SEAL | 1 | all | |
| 483306 | WHEEL | 1 | all | |
| 483445 | WHEEL | 1 | all | |
| 483969 | WHEEL & TIRE - BAR LT | 1 | all | |
| 483968 | WHEEL & TIRE - BAR RT | 1 | all | |
| 484040 | WHEEL & TIRE - SEMI PNEU | 1 | all | |
| 483960 | WHEEL & TIRE - TURF | 1 | all | |
| 483965 | WHEEL & TIRE - TURF | 1 | all | |
| 603602 | WHEEL MOTOR W/ HUB | 1 | all |
322D Idlers & Pulleys
| Part # | Description | Qty | Serials | |
|---|---|---|---|---|
| 393250 | IDLER | 1 | all | Shop |
| 393376 | IDLER | 1 | all | Shop |
| 730391 | "J" BOLT - IDLER ADJUSTMENT | 1 | all | |
| 393195 | IDLER | 1 | all | |
| 393390 | IDLER | 1 | all | |
| 824572 | IDLER ARM - 300/400 PUMPS | 1 | all | |
| 824487 | IDLER ARM - 9861 | 1 | all | |
| 824472 | IDLER ARM - M152R ASSEMBLY | 1 | all | |
| 824488 | IDLER ARM ASSEMBLY | 1 | all | |
| 824476 | IDLER ARM ASSY - HD MULE DRIVE | 1 | all | |
| 824494 | IDLER ARM ASSY - M1 72 | 1 | all | |
| 415892 | SHEAVE | 1 | all | |
| 415897 | SHEAVE | 1 | all | |
| 414745 | SHEAVE | 1 | all | |
| 831536 | SHEAVE | 1 | all | |
| 831537 | SHEAVE | 1 | all | |
| 831538 | SHEAVE | 1 | all | |
| 415884 | SHEAVE | 1 | all | |
| 415898 | SHEAVE | 1 | all | |
| 831432 | SHEAVE - M152/61 RR DECKS | 1 | all | |
| 609011 | SHEAVE PULLER - G1/G2 TAPERED | 1 | all | |
| 754003 | TABBED SPACER - FIXED IDLER | 1 | all |
322D Spindles
| Part # | Description | Qty | Serials | |
|---|---|---|---|---|
| 423680 | SPINDLE DEFLECTOR CONE | 1 | all | Shop |
| 604413 | HOUSING ASSY - SPINDLE ALUM | 1 | all | |
| 604414 | HOUSING ASSY - SPINDLE CAST | 1 | all | |
| 623780 | SPINDLE ASSY - BLADE CTR M1 | 1 | all | |
| 824151 | SPINDLE HOUSING - CAST | 1 | all | |
| 320520 | SPINDLE HOUSING - M1R DECKS | 1 | all | |
| 320550 | SPINDLE HOUSING - MACHINED 5.0 | 1 | all | |
| 604774 | SPINDLE SHAFT ASSEMBLY | 1 | all | |
| 604773 | SPINDLE SHAFT ASSEMBLY | 1 | all | |
| 604775 | SPINDLE SHAFT ASSEMBLY | 1 | all | |
| 605770 | SPINDLE SHAFT ASSY | 1 | all |
322D Bearings & Bushings
| Part # | Description | Qty | Serials | |
|---|---|---|---|---|
| 110081 | BALL BEARING | 1 | all | Shop |
| 120050 | BEARING - BALL | 1 | all | Shop |
| 120048 | BEARING - BALL DP WHEEL | 1 | all | Shop |
| 122522 | BEARING - TAPER | 1 | all | Shop |
| 110082 | BEARING - BALL SINGLE SEAL | 1 | all | |
| 121756 | BEARING - OILITE | 1 | all | |
| 121766 | BEARING - OILITE | 1 | all | |
| 121734 | BEARING - OILITE | 1 | all | |
| 121650 | BEARING - PEDESTAL | 1 | all | |
| 121651 | BEARING - PEDESTAL | 1 | all | |
| 423643 | BEARING BLOCK - M1 | 1 | all | |
| KU1439 | BEARING CASE GASKET - ROUND | 1 | all | |
| KU1441 | BEARING CASE GASKET-OCTAGONAL | 1 | all | |
| 130010 | BEARING CRADLE | 1 | all | |
| 123522 | BEARING CUP | 1 | all | |
| 885015 | BEARING PEDESTAL - HEAVY DUTY | 1 | all | |
| 130008 | BEARING THRUST | 1 | all | |
| 942136 | BEARING TUBE | 1 | all | |
| 110080 | BEARING-BALL 2 METAL SEAL 25MM | 1 | all | |
| 130340 | INNER BEARING | 1 | all | |
| 130342 | INNER THRUST BEARING | 1 | all | |
| 130080 | INPUT BEARING | 1 | all | |
| 422520 | NYLON BEARING | 1 | all | |
| 422558 | NYLON BEARING | 1 | all | |
| 130370 | OUTER BEARING | 1 | all | |
| 130344 | OUTER THRUST BEARING | 1 | all | |
| 822305 | PIVOT BEARING | 1 | all | |
| 422557 | SLEEVE BEARING | 1 | all | |
| 422559 | SLEEVE BEARING W/FLANGE | 1 | all | |
| 422556 | SLEEVE BEARING W/FLANGE | 1 | all | |
| 257037 | STEP BUSHING | 1 | all | |
| 422508 | STEP BUSHING | 1 | all | |
| 942137 | TUBE - BEARING | 1 | all | |
| 942135 | TUBE - BEARING | 1 | all |
322D Cables
322D Batteries & Chargers
| Part # | Description | Qty | Serials | |
|---|---|---|---|---|
| 180131 | BATTERY - 12 VOLT SIDEPOST DRY | 1 | all | |
| 180130 | BATTERY - 12 VOLT SIDEPOST-WET | 1 | all | |
| 243309 | HEX BOLT - SIDEPOST BATTERY | 1 | all | |
| 182325 | LIGHT INDICATOR - BATTERY | 1 | all |
322D Seats
| Part # | Description | Qty | Serials | |
|---|---|---|---|---|
| 324201 | EXTENSION-SEAT BELT-NON RETRAC | 1 | all | |
| 754245 | LATCH - SUSPENSION SEAT - M1 | 1 | all | |
| 643932 | SEAT - 300S DUAL LATCH | 1 | all | |
| 321580 | SEAT BELLOWS - GRAMMER | 1 | all | |
| 324200 | SEAT BELT - NON RETRACTABLE | 1 | all | |
| 321518 | SEAT CUSHION - CORD. W/SWITCH | 1 | all | |
| 321576 | SEAT CUSHION - GRAMMER-RIBBED | 1 | all | |
| 321584 | SEAT CUSHION - GRAMMER-SMOOTH | 1 | all | |
| 321587 | SEAT CUSHION GRAMMER CORDURA | 1 | all | |
| 321581 | SEAT HANDLE KIT - GRAMMER | 1 | all | |
| 754292 | SEAT LATCH - SUSP | 1 | all | |
| 644443 | SEAT MT W/A - SUSP 3/400 | 1 | all | |
| 643933 | SEAT PAN - SUSPENSION 300/400 | 1 | all | |
| 722884 | SEAT REIN - RAISED BACKREST | 1 | all | |
| 723387 | SEAT SIDE - EXTEND ARMREST LT | 1 | all | |
| 723386 | SEAT SIDE - EXTEND ARMREST RT | 1 | all | |
| 724941 | SEAT SIDE - FOLDING ARMREST LT | 1 | all | |
| 723436 | SEAT SIDE - FOLDING ARMREST LT | 1 | all | |
| 724940 | SEAT SIDE - FOLDING ARMREST RT | 1 | all | |
| 723435 | SEAT SIDE - FOLDING ARMREST RT | 1 | all | |
| 321582 | SEATBELT - GRAMMER | 1 | all | |
| 732313 | SLIDE STOP - SUSP SEAT | 1 | all | |
| 754235 | STOP - SUSPENSION SEAT 300/400 | 1 | all | |
| 605962 | SUSPENSION SEAT WIRING ADAPTER | 1 | all |
322D Carburetor & Fuel
| Part # | Description | Qty | Serials | |
|---|---|---|---|---|
| 100211 | CAP FUEL - SCREW ON DIESEL | 1 | all | Shop |
| KU1256 | FUEL PUMP MECH BIO | 1 | all | |
| KU1253 | FUEL PUMP MECHANICAL DIESEL | 1 | all | |
| 141140 | GAUGE - INTANK - FUEL-8.5 GAL | 1 | all | |
| KU1571 | GOVERNOR SPRING | 1 | all | |
| 821717 | HOSE - FUEL LINE 300S | 1 | all | |
| 821741 | HOSE - FUEL RETURN 300S | 1 | all | |
| KU1508 | INJECTOR WASHER | 1 | all | |
| 722009 | STOP - THROTTLE LEVER | 1 | all | |
| 732557 | STRAP - TANK - OIL M1 | 1 | all | |
| 604801 | TANK ASSEMBLY - M1 DIESEL | 1 | all | |
| 754069 | TANK RAIL - LEFT 300S | 1 | all | |
| 754068 | TANK RAIL - RIGHT 300S | 1 | all | |
| 603858 | THROTTLE ASSY - 322D/722D | 1 | all | |
| 722736 | THROTTLE STOP - HEAVY DUTY | 1 | all | |
| 363922 | TUBE - FUEL | 1 | all | |
| 363920 | TUBE - FUEL | 1 | all |
322D Engine Parts
| Part # | Description | Qty | Serials | |
|---|---|---|---|---|
| KU1302 | RADIATOR CAP | 1 | all | Shop |
| KU1174 | BLOCK HEATER | 1 | all | |
| 130152 | BLOCK KIT | 1 | all | |
| 130017 | BYPASS VALVE BACKUP RING | 1 | all | |
| KU1515 | CAP - RADIATOR DRAIN | 1 | all | |
| KU1166 | DIPSTICK | 1 | all | |
| KU1436 | EXHAUST MANIFOLD | 1 | all | |
| KU1211 | EXHAUST MANIFOLD STUD | 1 | all | |
| KU1207 | EXHAUST MANIFOLD STUD NUT | 1 | all | |
| KU1206 | EXHAUST MANIFOLD/HEAD BOLT | 1 | all | |
| 855004 | EXTENSION - REAR SHROUD M161R | 1 | all | |
| KU1362 | FREEZE PLUG - BLOCK 20MM | 1 | all | |
| KU1363 | FREEZE PLUG - BLOCK 28MM | 1 | all | |
| 130065 | GUIDE BLOCK | 1 | all | |
| KU1169 | OIL DIPSTICK TUBE | 1 | all | |
| KU1171 | OIL DIPSTICK TUBE PLUG | 1 | all | |
| KU1526 | OIL DRAIN PLUG - SIDE | 1 | all | |
| KU1528 | OIL FILL METAL CAP W/O RING | 1 | all | |
| KU1513 | OIL FILL PLASTIC CAP | 1 | all | |
| 822323 | PUSHER BLOCK | 1 | all | |
| KU1516 | RADIATOR DRAIN CLAMP | 1 | all | |
| 260608 | RING COTTER | 1 | all | |
| 260606 | RING COTTER | 1 | all | |
| 260612 | RING COTTER | 1 | all | |
| 644708 | ROCKER - REAR DECK LT | 1 | all | |
| 644707 | ROCKER - REAR DECK RT | 1 | all | |
| 130160 | SHOCK VALVE KIT | 1 | all | |
| 645570 | SHROUD - BOLT IN M161R | 1 | all | |
| 855018 | SHROUD-3348/M148/M248 CTR WELD | 1 | all | |
| 855044 | SHROUD-3348/M148/M248 LT WELD | 1 | all | |
| 855043 | SHROUD-3348/M148/M248 RT WELD | 1 | all | |
| 855289 | SHROUD-LT FRONTM172/9772/3472 | 1 | all | |
| 855291 | SHROUD-LT FRT-M152/98/3452 | 1 | all | |
| 855141 | SHROUD-LT FRT-M161/98/3461 | 1 | all | |
| 855114 | SHROUD-LT-9772R/3472LSRBOLT-ON | 1 | all | |
| 855273 | SHROUD-M152/9852/3452-CTR WELD | 1 | all | |
| 855274 | SHROUD-M152/9852/3452-LT WELD | 1 | all | |
| 855272 | SHROUD-M152/9852/3452-RT WELD | 1 | all | |
| 855092 | SHROUD-M161/9861/3461-CTR WELD | 1 | all | |
| 855093 | SHROUD-M161/9861/3461-LT WELD | 1 | all | |
| 855091 | SHROUD-M161/9861/3461-RT WELD | 1 | all | |
| 855111 | SHROUD-M172/9772/3472 CTR WELD | 1 | all | |
| 855112 | SHROUD-M172/9772/3472 LT WELD | 1 | all | |
| 855278 | SHROUD-M172/9772/3472 RT WELD | 1 | all | |
| 855298 | SHROUD-RT-9772R/3472LSRBOLT-ON | 1 | all | |
| 855297 | SHROUD-RT/CTR FRONT-M172/9772 | 1 | all | |
| 855295 | SHROUD-RT/CTR FRT-M152/98/3452 | 1 | all | |
| 855294 | SHROUD-RT/CTR FRT-M161/98/3461 | 1 | all | |
| KU1358 | THERMOSTAT 44MM | 1 | all | |
| 130214 | VALVE PLATE | 1 | all |
322D Seals & Gaskets
| Part # | Description | Qty | Serials | |
|---|---|---|---|---|
| 125855 | SEAL | 1 | all | Shop |
| KU1267 | AIR BLEEDER GASKET | 1 | all | |
| 130018 | BYPASS VALVE O-RING | 1 | all | |
| 130031 | CHECK PLUG O-RING | 1 | all | |
| KU1461 | CYLINDER HEAD GASKET | 1 | all | |
| KU1532 | DRAIN PLUG GASKET - BOTTOM | 1 | all | |
| KU1527 | DRAIN PLUG GASKET - SIDE | 1 | all | |
| KU1438 | EXHAUST MANIFOLD GASKET | 1 | all | |
| 363832 | FITTING - STEEL O-RING BOSS | 1 | all | |
| KU1445 | FUEL PUMP GASKET | 1 | all | |
| 101040 | GASKET - EXHAUST FLANGE KUBOTA | 1 | all | |
| KU1475 | GASKET - WATER PUMP | 1 | all | |
| 101875 | GROMMET | 1 | all | |
| 101880 | GROMMET | 1 | all | |
| 424275 | GROMMET | 1 | all | |
| 424235 | GROMMET | 1 | all | |
| 126529 | O-RING | 1 | all | |
| 126537 | O-RING | 1 | all | |
| 126527 | O-RING | 1 | all | |
| 126535 | O-RING | 1 | all | |
| KU1423 | O-RING - FUEL FILTER - (LARGE) | 1 | all | |
| KU1235 | O-RING - FUEL FILTER - (SMALL) | 1 | all | |
| KU1401 | OIL CAP O-RING | 1 | all | |
| 103739 | PLUG - O-RING BOSS | 1 | all | |
| KU1413 | REAR MAIN SEAL | 1 | all | |
| 130088 | RETAINING RING - INPUT SEAL | 1 | all | |
| 125363 | SEAL | 1 | all | |
| 125165 | SEAL | 1 | all | |
| 130312 | SEAL - COMMUTATOR | 1 | all | |
| 130315 | SEAL - DIRT AND WATER | 1 | all | |
| KU1473 | SEAL - FRONT MAIN | 1 | all | |
| 130341 | SEAL - INNER | 1 | all | |
| 130186 | SEAL KIT | 1 | all | |
| 130385 | SEAL KIT | 1 | all | |
| 125357 | SEAL KIT - TRUNNION | 1 | all | |
| 130386 | SEAL RING | 1 | all | |
| 130184 | SEAL RING - MOLDED | 1 | all | |
| 130020 | SEAL RING-CHARGE COVER-SQUARE | 1 | all | |
| KU1427 | SPEED CONTROL PLATE GASKET | 1 | all | |
| KU1433 | THERMOSTAT GASKET 44MM | 1 | all | |
| KU1468 | VALVE COVER GASKET SIX BOLT | 1 | all | |
| KU1469 | VALVE COVER GASKET/FOUR BOLT | 1 | all | |
| KU1456 | WATER FLANGE BLOCK SIDE GASKET | 1 | all |
322D Electrical & Switches
| Part # | Description | Qty | Serials | |
|---|---|---|---|---|
| 183827 | KEY SWITCH SEALED KUBOTA | 1 | all | Shop |
| 184217 | MODULE - SWITCH INTERLOCK D902 | 1 | all | Shop |
| 183925 | SWITCH PTO PUSH-PULL | 1 | all | Shop |
| KU1145 | 40 AMP ALTERNATOR | 1 | all | |
| KU1142 | ALTERNATOR STAY ADJUST STRAP | 1 | all | |
| 425223 | BATTERY TERMINAL BOOT | 1 | all | |
| 425215 | BOOT - ALTERNATOR TERMINAL RED | 1 | all | |
| KU1144 | CON/TERMINAL ALTERNATOR | 1 | all | |
| 184926 | CONNECTOR - 5WAY FEMALE | 1 | all | |
| 184942 | CONNECTOR - 9WAY | 1 | all | |
| 181462 | FUSE - AUTO ATC - 10 | 1 | all | |
| 181465 | FUSE - AUTO ATC - 15 | 1 | all | |
| 181470 | FUSE - AUTO ATC - 30 | 1 | all | |
| 181460 | FUSE - AUTO ATC - 7.50 | 1 | all | |
| 181722 | FUSE BLOCK | 1 | all | |
| 184458 | FUSE CLIP - 1 WIRE | 1 | all | |
| 184460 | FUSE CLIP - 2 WIRE | 1 | all | |
| 184472 | FUSE CLIP - DOUBLE CLIP | 1 | all | |
| 141160 | GAUGE - TEMP ZONED ELECTRIC | 1 | all | |
| 141200 | GAUGE - VOLTMETER | 1 | all | |
| 604895 | HARNESS - WORKLAMP - 900 | 1 | all | |
| 422079 | HOLE PLUG - WORK LAMP | 1 | all | |
| 141551 | HOUR METER - SNAP IN | 1 | all | |
| 101106 | KEY IGNIT DOUBLE NOTCH KUBOTA | 1 | all | |
| 182245 | LIGHT BULB - HALOGEN | 1 | all | |
| 182005 | LIGHT BULB - WORKLAMP | 1 | all | |
| 182326 | LIGHT INDICATOR - BRAKE | 1 | all | |
| 182328 | LIGHT INDICATOR - TEMP | 1 | all | |
| KU1154 | MAGNETIC-ST SOLENOID SWITCH | 1 | all | |
| 720161 | MOUNT - STEERING SWITCH LT | 1 | all | |
| 720160 | MOUNT - STEERING SWITCH RT | 1 | all | |
| 729499 | MOUNT - SWITCH BOX - GRAM SEAT | 1 | all | |
| 184272 | RELAY - 12VDC | 1 | all | |
| 130170 | RETAINING RING - WIRE | 1 | all | |
| 321595 | SEAT SWITCH - 2 WIRE GRAMMER | 1 | all | |
| 321577 | SEAT SWITCH-MULTI TERM GRAMMER | 1 | all | |
| 281580 | SQUARE KEY | 1 | all | |
| 281583 | SQUARE KEY | 1 | all | |
| KU1185 | STARTER | 1 | all | |
| KU1138 | STARTER PLATE | 1 | all | |
| 425219 | STARTER TERMINAL BOOT | 1 | all | |
| 183894 | SWITCH - INTERLOCK PLUNGER | 1 | all | |
| 184179 | SWITCH - ROCKER | 1 | all | |
| 183870 | SWITCH - SEAT | 1 | all | |
| 183871 | SWITCH - SEAT - TWIST IN | 1 | all | |
| 184581 | TERMINAL - .250 FASTON | 1 | all | |
| 605970 | WIRING ADAPTER-GRAMMER SU SEAT | 1 | all | |
| 281860 | WOODRUFF KEY | 1 | all | |
| 604893 | WORK LAMP HARNESS | 1 | all | |
| 182261 | WORKLAMP - LED FLOOD | 1 | all |
322D Drive & Hydraulics
| Part # | Description | Qty | Serials | |
|---|---|---|---|---|
| 391462 | HYDRO PUMP - LT | 1 | all | Shop |
| 360069 | ADAPTER FITTING | 1 | all | |
| 820331 | CHAIN - 5 LINKS M1 | 1 | all | |
| 130022 | CHARGE PUMP COVER | 1 | all | |
| 722751 | CLUTCH COVER - 322D | 1 | all | |
| 388740 | CLUTCH ELEC | 1 | all | |
| KU1188 | CLUTCH OVERRUNNING | 1 | all | |
| 363638 | FITTING - 90 DEGREE | 1 | all | |
| 363826 | FITTING - BARB STRAIGHT | 1 | all | |
| 360058 | FITTING - STRAIGHT | 1 | all | |
| 821795 | HOSE - HYDRAULIC | 1 | all | |
| 821787 | HOSE - HYDRAULIC | 1 | all | |
| 821724 | HOSE - VENT CLEAR | 1 | all | |
| 424377 | HOSE ASSEMBLY WITH SLEEVE | 1 | all | |
| 424321 | HOSE ASSY | 1 | all | |
| 424317 | HOSE ASSY - RETURN | 1 | all | |
| 391463 | HYDRO PUMP - RT | 1 | all | |
| 644619 | PUMP PLATE | 1 | all | |
| 732882 | REIN STRAP - PUMP PLATE | 1 | all | |
| 303611 | TRACK SET - SEAT SUSPENSION | 1 | all | |
| KU1304 | WATER PUMP | 1 | all | |
| KU1306 | WATER PUMP BYPASS HOSE | 1 | all |
322D Handles & Controls
| Part # | Description | Qty | Serials | |
|---|---|---|---|---|
| 422179 | GRIP - HANDLE | 1 | all | Shop |
| 643926 | MOUNT - STEERING LEVER ADJ. | 1 | all | Shop |
| 729945 | BRKT - DISCHARGE LEVER PIVOT | 1 | all | |
| 644467 | FOOT PEDAL - CARRIER ADJ | 1 | all | |
| 422150 | GRIP - HANDLE | 1 | all | |
| 422155 | GRIP - HANDLE | 1 | all | |
| 774359 | LEVER - DISCHARGE CONTROL | 1 | all | |
| 729944 | LEVER PIVOT | 1 | all | |
| 183860 | LEVER SWITCH | 1 | all | |
| 644481 | LIFT LEVER - M1 DECK ADJ | 1 | all | |
| 644482 | LIFT LEVER - M1 DECK ADJ | 1 | all | |
| 780154 | ROD - STEERING | 1 | all | |
| 780151 | ROD - STEERING LINK | 1 | all | |
| 130035 | SHAFT - CONTROL | 1 | all | |
| 321589 | SHOCK ABSORBER - SEAT | 1 | all | |
| KU1272 | SPEED CONTROL PLATE ASSEMBLY | 1 | all | |
| 604778 | STEERING LEVER ASSY - WIDE STD | 1 | all | |
| 605750 | STRG LEVER ASSY-UPR RT 700/M1 | 1 | all | |
| 645749 | STRG LEVER W/A - LWR LT FLDG | 1 | all | |
| 645748 | STRG LEVER W/A - LWR RT ADJ | 1 | all |
322D Deck & Body Parts
| Part # | Description | Qty | Serials | |
|---|---|---|---|---|
| 603725 | CENTER ROLLER ASSEMBLY | 1 | all | Shop |
| 604317 | DISCHARGE SHIELD ASSY - FLEX | 1 | all | Shop |
| 426122 | ROLLER 3" X 2" | 1 | all | Shop |
| 422042 | SHIELD - FLEX DISCHARGE | 1 | all | Shop |
| 723057 | ANGLE - RR SHIELD SUPPORT | 1 | all | |
| 775247 | ARM | 1 | all | |
| 754288 | ARM REST - FOLDING | 1 | all | |
| 321523 | ARMREST - CORDURA COVERED | 1 | all | |
| 182251 | BEZEL - SNAP MOUNT WORKLAMP | 1 | all | |
| 645111 | BRACKET | 1 | all | |
| 645112 | BRACKET | 1 | all | |
| 729943 | BRACKET | 1 | all | |
| 755046 | BRACKET - ANTI-ROTATION | 1 | all | |
| 754226 | BRACKET - DUAL LATCH MOUNT | 1 | all | |
| 732520 | BRACKET - IDLER SPRING-M1 | 1 | all | |
| 723091 | BRACKET - TANK- FRONT 300/400 | 1 | all | |
| 645562 | BUMPER - M1 400 | 1 | all | |
| 422095 | CAP - VINYL .75 ID | 1 | all | |
| 130030 | CHECK PLUG | 1 | all | |
| 130311 | COUPLING SHAFT | 1 | all | |
| 422088 | COVER - CLUTCH BRACKET | 1 | all | |
| 321590 | COVERS | 1 | all | |
| 645171 | DECK - M161R | 1 | all | |
| 645172 | DECK - M172R | 1 | all | |
| 645170 | DECK - MOWER M152R | 1 | all | |
| 424204 | DECK FLAP M1 61 | 1 | all | |
| 424217 | DECK FLAP M152R | 1 | all | |
| 424227 | DECK FLAP M172R | 1 | all | |
| 644160 | DECK WELDMENT | 1 | all | |
| 644161 | DECK WELDMENT - M172 / 07 | 1 | all | |
| 722885 | DEFLECTOR - SHIELD DISCHARGE | 1 | all | |
| 130320 | DRIVE LINK | 1 | all | |
| 754240 | DUAL LATCH - SEAT | 1 | all | |
| 481434 | DUST CAP - DOMED | 1 | all | |
| 644058 | END CAP - MULCH | 1 | all | |
| 130044 | END CAP KIT | 1 | all | |
| 130048 | END CAP KIT - W/O PLATE | 1 | all | |
| 644266 | FENDER - M1 LT | 1 | all | |
| 644265 | FENDER - M1 RT | 1 | all | |
| 424225 | FLAP - SHIELD SIDES | 1 | all | |
| 424206 | FLAP DECK - M1 72 | 1 | all | |
| 424219 | FLAP DECK - M161R | 1 | all | |
| 644269 | FOOTREST - LC M1 - 52/61 | 1 | all | |
| 644256 | FOOTREST - M1 ON FRAME | 1 | all | |
| 754204 | FORMED ROLLER MOUNT-M1/M248 LT | 1 | all | |
| 754203 | FORMED ROLLER MOUNT-M1/M248 RT | 1 | all | |
| 644296 | FRAME - LOWER - 322D | 1 | all | |
| 644248 | FRAME - UPPER - M1 300/400 | 1 | all | |
| KU1361 | FREEZE PLUG - HEAD 30MM | 1 | all | |
| 321531 | GRAMMER HOUSING KIT | 1 | all | |
| 644305 | GUIDE - LATCH TUBE | 1 | all | |
| 820111 | HINGE - DISCHARGE SHIELD | 1 | all | |
| 604410 | HOUSING & BRG SUB ASSY | 1 | all | |
| 130054 | HOUSING KIT 16A | 1 | all | |
| 422090 | ISOLATOR - REAR BELT SHIELD | 1 | all | |
| 775104 | LATCH - DECK | 1 | all | |
| 281301 | LATCH - RUBBER DRAW | 1 | all | |
| 644584 | MOUNT - ANTI SCALP ROLLER RT | 1 | all | |
| 643850 | MOUNT - ANTI-SCALP ROLLER HD | 1 | all | |
| 643695 | MOUNT - ANTI-SCALP ROLLER LT | 1 | all | |
| 645579 | MOUNT - ANTI-SCALP ROLLER LT | 1 | all | |
| 645589 | MOUNT - ANTI-SCALP ROLLER LT | 1 | all | |
| 643842 | MOUNT - ANTI-SCALP ROLLER RT | 1 | all | |
| 645580 | MOUNT - ANTI-SCALP ROLLER RT | 1 | all | |
| 644141 | MOUNT - CONSOLE - 300/400 | 1 | all | |
| 643632 | MOUNT - PIVOT VAC HOUSING | 1 | all | |
| 644570 | MOUNT-DISCHARGE SHIELD | 1 | all | |
| 645577 | MOUNT-HVY DTY ROLLER RT R-DECK | 1 | all | |
| 645574 | MT - HVY DTY ROLLER LT M1/52 | 1 | all | |
| 645573 | MT - HVY DTY ROLLER RT M1/52R | 1 | all | |
| 645581 | MT-ANTI-SCALP ROLLER-RT R DECK | 1 | all | |
| 644610 | MULCH PLATE - 61 LEFT | 1 | all | |
| 644611 | MULCH PLATE - 61 RT | 1 | all | |
| 644613 | MULCH PLATE - LEFT | 1 | all | |
| 644612 | MULCH PLATE - RIGHT | 1 | all | |
| KU1260 | NOZZLE HOLDER ASSEMBLY | 1 | all | |
| 722729 | PANEL - LOWER REAR 322D | 1 | all | |
| 722388 | PANEL - SEAT REINFORCEMENT | 1 | all | |
| 754115 | PLATE - BOLT ON ROLLER M152 RT | 1 | all | |
| 766105 | PLATE - DISCHARGE COVER | 1 | all | |
| 774064 | PLATE - LIFT BEARING | 1 | all | |
| 754231 | PLATE - SUSPENSION SEAT | 1 | all | |
| 280705 | PLUG - RELIEF | 1 | all | |
| 422063 | PLUG NYLON | 1 | all | |
| 604676 | RADIUS ARM ASSY - M1 300 | 1 | all | |
| 822314 | ROLLER - SIDE GUARD | 1 | all | |
| 755071 | ROLLER MOUNT | 1 | all | |
| 755087 | ROLLER MOUNT - FRONT M148 | 1 | all | |
| 755006 | ROLLER MOUNT - REAR M148 | 1 | all | |
| 324104 | ROPS - M1 | 1 | all | |
| 643863 | ROPS MOUNT M1 - LT | 1 | all | |
| 643862 | ROPS MOUNT M1 - RT | 1 | all | |
| 424052 | RUBBER BUMPER | 1 | all | |
| 424015 | RUBBER BUMPER | 1 | all | |
| 130178 | SHAFT - SUB ASSY | 1 | all | |
| 833543 | SHIELD | 1 | all | |
| 604751 | SHIELD - ASSY M1 322D REAR | 1 | all | |
| 721167 | SHIELD - BEARING | 1 | all | |
| 722334 | SHIELD - BELT 52/220 LT | 1 | all | |
| 722333 | SHIELD - BELT 52/220 RT | 1 | all | |
| 723331 | SHIELD - BELT LEFT | 1 | all | |
| 722452 | SHIELD - BELT MID 61 LT | 1 | all | |
| 722451 | SHIELD - BELT MID 61 RT | 1 | all | |
| 723330 | SHIELD - BELT RIGHT | 1 | all | |
| 723397 | SHIELD - DEBRIS HYDRO 322 LT | 1 | all | |
| 723396 | SHIELD - DEBRIS HYDRO 322 RT | 1 | all | |
| 645759 | SHIELD - DISCHARGE - M1R | 1 | all | |
| 722880 | SHIELD - DISCHARGE M1R | 1 | all | |
| 722495 | SHIELD - M1 TANK | 1 | all | |
| 644723 | SHIELD - UPPER REAR 322D/400 | 1 | all | |
| 766015 | SHIELD HOLDER | 1 | all | |
| 723227 | SIDE PANEL - WIDE SEAT 05 LT | 1 | all | |
| 723226 | SIDE PANEL - WIDE SEAT 05 RT | 1 | all | |
| 783277 | STRAP - BELT GUARD | 1 | all | |
| 605751 | STRG LVR ASSY-UPR LT 7/900/M1 | 1 | all | |
| 605757 | STRG LVR ASSY-UPR LT 700 EXT | 1 | all | |
| 605756 | STRG LVR ASSY-UPR RT 700 EXT | 1 | all | |
| 420901 | TREAD - STEP | 1 | all | |
| 784057 | TUBE - GUIDE | 1 | all | |
| 644778 | TUBE - HEIGHT ADJUSTMENT M1 | 1 | all | |
| 130330 | WEAR PLATE | 1 | all |
322D Hardware
| Part # | Description | Qty | Serials | |
|---|---|---|---|---|
| 421200 | FIBER WASHER | 1 | all | Shop |
| 604365 | FORK & LOCK NUT ASSY | 1 | all | Shop |
| 243583 | HEX BOLT - FLANGE - GRADE 8 | 1 | all | Shop |
| 253850 | NUT - LOCK | 1 | all | Shop |
| 257061 | WASHER | 1 | all | Shop |
| 257055 | WASHER | 1 | all | Shop |
| 257057 | WASHER - HARDENED | 1 | all | Shop |
| 130027 | BALL & SPRING ASSEMBLY | 1 | all | |
| KU1500 | BOLT - MUFFLER | 1 | all | |
| 253215 | BOLT FLANGE | 1 | all | |
| 253206 | BOLT WHIZ | 1 | all | |
| 253172 | BOLT WHIZ | 1 | all | |
| 253200 | BOLT WHIZ | 1 | all | |
| 253203 | BOLT WHIZ FLANGE | 1 | all | |
| 253167 | BOLT WHIZ HEX | 1 | all | |
| 253173 | BOLT WHIZ HEX | 1 | all | |
| 253192 | BOLT WHIZ HEX FLANGE | 1 | all | |
| 253193 | BOLT WHIZ HEX FLANGE | 1 | all | |
| 253191 | BOLT WHIZ HEX FLANGE | 1 | all | |
| 253195 | BOLT WHIZ HEX FLANGE | 1 | all | |
| 253175 | BOLT WHIZ HEX-SINGLE BOLT | 1 | all | |
| 253179 | BOLT WHIZ PHIL TRUSS | 1 | all | |
| 253177 | BOLT WHIZ TRUSS | 1 | all | |
| 253176 | BOLT WHIZ TRUSS | 1 | all | |
| 424056 | BUMPER - W/STUD | 1 | all | |
| 833542 | CAP - BUMPER NUT | 1 | all | |
| 422127 | CAP - SEAT SPRING | 1 | all | |
| 259030 | CAP SCREW | 1 | all | |
| 247310 | CARRIAGE BOLT | 1 | all | |
| 247130 | CARRIAGE BOLT | 1 | all | |
| 247135 | CARRIAGE BOLT | 1 | all | |
| 247253 | CARRIAGE BOLT | 1 | all | |
| 247726 | CARRIAGE BOLT | 1 | all | |
| 247127 | CARRIAGE BOLT | 1 | all | |
| 280266 | CLAMP - HOSE-SPRING | 1 | all | |
| 280264 | CLAMP - HOSE-SPRING | 1 | all | |
| 280261 | CLAMP - HOSE-SPRING | 1 | all | |
| 280257 | CLAMP - HOSE-SPRING | 1 | all | |
| 261405 | CLEVIS PIN | 1 | all | |
| 730434 | DECK PIN - HEIGHT ADJUSTMENT | 1 | all | |
| 243597 | DIAMOND HEAD BOLT | 1 | all | |
| 130046 | DOWEL PIN | 1 | all | |
| 283848 | EXTENSION SPRING | 1 | all | |
| 283820 | EXTENSION SPRING W/SWIVEL | 1 | all | |
| 782344 | FLAP STRAP - M152R | 1 | all | |
| 782348 | FLAP STRAP - M161R | 1 | all | |
| 782355 | FLAP STRAP - M172R | 1 | all | |
| 260523 | HAIR PIN | 1 | all | |
| 243331 | HEX BOLT | 1 | all | |
| 243365 | HEX BOLT | 1 | all | |
| 243575 | HEX BOLT | 1 | all | |
| 243810 | HEX BOLT | 1 | all | |
| 243335 | HEX BOLT | 1 | all | |
| 243355 | HEX BOLT | 1 | all | |
| 243590 | HEX BOLT | 1 | all | |
| 243385 | HEX BOLT | 1 | all | |
| 243551 | HEX BOLT | 1 | all | |
| 243600 | HEX BOLT | 1 | all | |
| 243570 | HEX BOLT | 1 | all | |
| 243565 | HEX BOLT | 1 | all | |
| 243197 | HEX BOLT | 1 | all | |
| 243330 | HEX BOLT | 1 | all | |
| 243560 | HEX BOLT | 1 | all | |
| 243205 | HEX BOLT | 1 | all | |
| 243601 | HEX BOLT | 1 | all | |
| 243340 | HEX BOLT | 1 | all | |
| 243349 | HEX BOLT | 1 | all | |
| 243038 | HEX BOLT | 1 | all | |
| 243220 | HEX BOLT | 1 | all | |
| 243035 | HEX BOLT | 1 | all | |
| 243050 | HEX BOLT | 1 | all | |
| 243195 | HEX BOLT | 1 | all | |
| 243580 | HEX BOLT | 1 | all | |
| 243215 | HEX BOLT | 1 | all | |
| 243016 | HEX BOLT | 1 | all | |
| 243458 | HEX BOLT GR 8 | 1 | all | |
| 281582 | KEY SQUARE | 1 | all | |
| 248565 | LUG BOLT | 1 | all | |
| 254493 | NUT | 1 | all | |
| 254450 | NUT | 1 | all | |
| 254490 | NUT | 1 | all | |
| 254470 | NUT | 1 | all | |
| 254522 | NUT | 1 | all | |
| 254436 | NUT | 1 | all | |
| 254444 | NUT | 1 | all | |
| 254441 | NUT | 1 | all | |
| 254438 | NUT - ADJUSTABLE LEVER | 1 | all | |
| 253067 | NUT - FLANGE SPIRAL LOC | 1 | all | |
| 253470 | NUT - INSERT - NYLON | 1 | all | |
| 253440 | NUT - INSERT - NYLON | 1 | all | |
| 253450 | NUT - INSERT-NYLON | 1 | all | |
| 254505 | NUT - JAM NYLON-TOPLOCK | 1 | all | |
| 253970 | NUT - LOCK | 1 | all | |
| 253930 | NUT - LOCK | 1 | all | |
| 253890 | NUT - LOCK | 1 | all | |
| 254431 | NUT - SPEED | 1 | all | |
| 254448 | NUT - SPEED | 1 | all | |
| 253043 | NUT - WHIZ | 1 | all | |
| 253035 | NUT - WHIZ | 1 | all | |
| 253025 | NUT - WHIZ | 1 | all | |
| 253058 | NUT - WHIZ | 1 | all | |
| 253020 | NUT - WHIZ | 1 | all | |
| 253061 | NUT - WHIZ | 1 | all | |
| 253066 | NUT - WHIZ | 1 | all | |
| 253042 | NUT - WHIZ | 1 | all | |
| 253038 | NUT - WHIZ | 1 | all | |
| 830325 | NUT SPEED | 1 | all | |
| 780651 | PIN | 1 | all | |
| 780650 | PIN - FLEX DISCHARGE SHIELD | 1 | all | |
| 644618 | PIN - SEAT HINGE | 1 | all | |
| 887114 | PIVOT BOLT - SUSPENSION FORK | 1 | all | |
| 730230 | PIVOT PIN - SEAT LATCH | 1 | all | |
| 263529 | RETAINER EXTERNAL | 1 | all | |
| 644512 | ROLLER LOCK PIN | 1 | all | |
| 247141 | ROUND HEAD BOLT - RIBBED NECK | 1 | all | |
| 271080 | SCREW - HEX HEAD FLANGED | 1 | all | |
| 270078 | SCREW - SOCKET HEAD M8 | 1 | all | |
| 780661 | SHAFT - SPRING | 1 | all | |
| 780663 | SHAFT - SPRING | 1 | all | |
| 882035 | SHAFT - SPRING ROD MOUNT | 1 | all | |
| 423170 | SNAP CLIP | 1 | all | |
| 282607 | SPACER | 1 | all | |
| 282615 | SPACER | 1 | all | |
| 282630 | SPACER | 1 | all | |
| 902294 | SPACER | 1 | all | |
| 902422 | SPACER - AXLE | 1 | all | |
| 902429 | SPACER - AXLE CENTER REAR | 1 | all | |
| 903643 | SPACER - BEARING DEEP SPINDLE | 1 | all | |
| 423696 | SPACER - HEIGHT ADJUSTMENT | 1 | all | |
| 130086 | SPACER - INPUT SEAL | 1 | all | |
| 423690 | SPACER - PC BOARD SUPPORT | 1 | all | |
| 775068 | SPACER - ROLLER | 1 | all | |
| 902284 | SPACER - ROLLER MOUNT | 1 | all | |
| 901355 | SPACER - ROLLER RT | 1 | all | |
| 881095 | SPACER .25 - TRACTION KIT | 1 | all | |
| 321593 | SPRING & BUSHING KIT | 1 | all | |
| 283516 | SPRING - COMPRESSION | 1 | all | |
| 283324 | SPRING - COMPRESSION | 1 | all | |
| 283395 | SPRING - COMPRESSION | 1 | all | |
| 283326 | SPRING - COMPRESSION | 1 | all | |
| 283389 | SPRING - COMPRESSION | 1 | all | |
| 283381 | SPRING - COMPRESSION | 1 | all | |
| 130157 | SPRING - POPPET | 1 | all | |
| 284406 | SPRING - TORSION | 1 | all | |
| 284408 | SPRING - TORSION | 1 | all | |
| 130015 | SPRING BLOCK | 1 | all | |
| KU1402 | SPRING PIN -SPEED CONTROL ASSY | 1 | all | |
| 774317 | STRAP | 1 | all | |
| 732586 | STRAP - ADJUSTING DECK | 1 | all | |
| 604785 | STRAP - BATTERY HOLD DOWN | 1 | all | |
| 774337 | STRAP - DEFLECTOR | 1 | all | |
| 782512 | STRAP - M1 SEAT SPACER GRAM | 1 | all | |
| 252821 | THUMB SCREW DECK 3 PRONG 1.25 | 1 | all | |
| 423147 | TIE | 1 | all | |
| 321265 | U-BOLT - .375 | 1 | all | |
| 257040 | WASHER | 1 | all | |
| 883804 | WASHER | 1 | all | |
| 257062 | WASHER | 1 | all | |
| 257030 | WASHER | 1 | all | |
| 772061 | WASHER | 1 | all | |
| 257106 | WASHER | 1 | all | |
| 257059 | WASHER | 1 | all | |
| 257104 | WASHER | 1 | all | |
| 257063 | WASHER | 1 | all | |
| 257051 | WASHER | 1 | all | |
| 257080 | WASHER | 1 | all | |
| 774020 | WASHER | 1 | all | |
| 257067 | WASHER | 1 | all | |
| 775002 | WASHER | 1 | all | |
| 257092 | WASHER - 18 GA BUSHING | 1 | all | |
| 130305 | WASHER - BACKUP | 1 | all | |
| 130220 | WASHER - BLOCK THRUST | 1 | all | |
| 257039 | WASHER - CLUTCH DD | 1 | all | |
| 257041 | WASHER - CUPPED | 1 | all | |
| 257019 | WASHER - FLAT | 1 | all | |
| 257412 | WASHER - LOCK | 1 | all | |
| 257432 | WASHER - LOCK | 1 | all | |
| 257442 | WASHER - LOCK | 1 | all | |
| 821516 | WASHER - NYLON | 1 | all | |
| 257320 | WASHER - SPRING | 1 | all | |
| 257319 | WASHER - SPRING | 1 | all | |
| 130346 | WASHER - THRUST | 1 | all | |
| 130306 | WASHER RING | 1 | all |
322D Oil & Lubricants
| Part # | Description | Qty | Serials | |
|---|---|---|---|---|
| 100728 | DIPSTICK - OIL RESERVOIR M1 | 1 | all | |
| 280745 | GREASE FITTING (ZERK) | 1 | all | |
| 182327 | LIGHT INDICATOR - OIL | 1 | all | |
| 603606 | OIL RESERVOIR ASSY-M1 300/400 | 1 | all | |
| KU1148 | OIL SWITCH | 1 | all | |
| KU1531 | PLUG-OIL DRN BTM. NON T-DRIVE | 1 | all | |
| 423670 | STABILIZER CAP - IDLER ARM | 1 | all |
322D Decals
| Part # | Description | Qty | Serials | |
|---|---|---|---|---|
| 163415 | DECAL - 321D TRIM LT. 06 | 1 | all | |
| 163414 | DECAL - 321D TRIM RT. 06 | 1 | all | |
| 163275 | DECAL - 322D TRIM LT. | 1 | all | |
| 163417 | DECAL - 322D TRIM LT. 06 | 1 | all | |
| 163274 | DECAL - 322D TRIM RT. | 1 | all | |
| 163416 | DECAL - 322D TRIM RT. 06 | 1 | all | |
| 163419 | DECAL - 325D TRIM LT | 1 | all | |
| 163418 | DECAL - 325D TRIM RT | 1 | all | |
| 163277 | DECAL - 327 TRIM LT. | 1 | all | |
| 163423 | DECAL - 327 TRIM LT. 06 | 1 | all | |
| 163276 | DECAL - 327 TRIM RT. | 1 | all | |
| 163422 | DECAL - 327 TRIM RT. 06 | 1 | all | |
| 163427 | DECAL - 329 TRIM LT. 06 | 1 | all | |
| 163426 | DECAL - 329 TRIM RT. 06 | 1 | all | |
| 161142 | DECAL - CONSOLE M1 321D | 1 | all | |
| 162187 | DECAL - CUTTING HEIGHT M1 | 1 | all | |
| 163265 | DECAL 321D TRIM - LT | 1 | all | |
| 163264 | DECAL 321D TRIM - RT | 1 | all | |
| 163267 | DECAL 325 TRIM - LT | 1 | all | |
| 163266 | DECAL 325 TRIM - RT | 1 | all | |
| 163269 | DECAL 325A TRIM - LT | 1 | all | |
| 163268 | DECAL 325A TRIM - RT | 1 | all | |
| 163279 | DECAL 327A TRIM - LT | 1 | all | |
| 163278 | DECAL 327A TRIM - RT | 1 | all | |
| 163297 | DECAL 32X TRIM - LT | 1 | all | |
| 163296 | DECAL 32X TRIM - RT | 1 | all | |
| 161123 | DECAL CONSOLE PIC | 1 | all | |
| 163289 | DECAL LOGO RED SMALL | 1 | all | |
| 605300 | DECAL SET - 322D | 1 | all |
322D Attachments & Tools
322D Maintenance Kits
| Part # | Description | Qty | Serials | |
|---|---|---|---|---|
| 503043 | AIR DAM KIT 72 | 1 | all | |
| 321592 | BACKREST KIT | 1 | all | |
| 321591 | SLIDE RAIL KIT-GRAMMER | 1 | all |
322D Other Parts
| Part # | Description | Qty | Serials | |
|---|---|---|---|---|
| 360056 | ADAPTER | 1 | all | |
| 360046 | ADAPTER 45 DEG | 1 | all | |
| 729792 | AIR DAM 52/61 CENTER | 1 | all | |
| 729794 | AIR DAM 61 LEFT | 1 | all | |
| 729793 | AIR DAM 61 RIGHT | 1 | all | |
| 729796 | AIR DAM 72 CENTER | 1 | all | |
| 729795 | AIR DAM 72 LEFT | 1 | all | |
| 729797 | AIR DAM 72 RIGHT | 1 | all | |
| 754122 | AIR DAM 9772/M172/3472 | 1 | all | |
| 754105 | AIR DAM 9861/M161 | 1 | all | |
| 321579 | ARMREST - LT - GRAMMER | 1 | all | |
| 321578 | ARMREST - RT - GRAMMER | 1 | all | |
| 321519 | BACK CUSHION - CORDURA | 1 | all | |
| 321586 | BACK CUSHION - GRAMMER-CORDURA | 1 | all | |
| 321575 | BACK CUSHION - GRAMMER-RIBBED | 1 | all | |
| 321583 | BACK CUSHION - GRAMMER-SMOOTH | 1 | all | |
| 321588 | BACK REST ADJUST - GRAMMER | 1 | all | |
| 265615 | BALL JOINT RH TD | 1 | all | |
| 644108 | BATTERY BOX | 1 | all | |
| 645153 | CARRIER - M161 EXT | 1 | all | |
| 644135 | CARRIER - M172 | 1 | all | |
| 644139 | CONSOLE - 300S M1 | 1 | all | |
| 150225 | CUP HOLDER | 1 | all | |
| KU1946 | D722/D902 EB/E2B SERVICE MAN | 1 | all | |
| 643313 | FORK YOKE - SUSPENSION | 1 | all | |
| 130060 | GEROTOR SET | 1 | all | |
| 766025 | GRASS THROWER | 1 | all | |
| 424095 | ISOLATOR - SEAT | 1 | all | |
| 645563 | MT - M1 PUSHER | 1 | all | |
| 000000 | NOT AVAILABLE | 1 | all | |
| 427275 | PAD - BATTERY TRAY | 1 | all | |
| 645652 | PIVOT | 1 | all | |
| 643677 | PIVOT - FORK YOKE SUSPENSION | 1 | all | |
| 130155 | POPPET | 1 | all | |
| 265665 | ROD END | 1 | all | |
| 265651 | ROD END LT FEMALE | 1 | all | |
| 130383 | ROTOR SET | 1 | all | |
| 321585 | SLIDE - LOWER ADJUST - GRAMMER | 1 | all | |
| 604772 | STG PIVOT LT - W/ STOP & BRGS | 1 | all | |
| 604771 | STG PIVOT RT - W/ STOP & BRGS | 1 | all | |
| 303601 | SUSPENSION - SEAT | 1 | all | |
| 725117 | TAB | 1 | all | |
| 141222 | TEMPERATURE SENDER | 1 | all | |
| 420902 | TREAD - FOOT REST | 1 | all | |
| 420905 | TREAD - FOOT REST | 1 | all | |
| 420904 | TREAD - FOOT REST EXT | 1 | all | |
| 822632 | TRIM | 1 | all | |
| 822630 | TRIM - SEAT EDGE | 1 | all | |
| 822620 | TRIM - SEAT EDGE | 1 | all | |
| 184570 | TYPE 1 6MM PUSHON | 1 | all | |
| 182253 | WORKLAMP - FLOOD | 1 | all | |
| 182250 | WORKLAMP - HALOGEN FLOOD | 1 | all |
Shop all Grasshopper parts · Parts for other models · Look up by serial number
Grasshopper is a trademark of its owner. Outdoor Power LLC sells genuine OEM and quality replacement parts.
