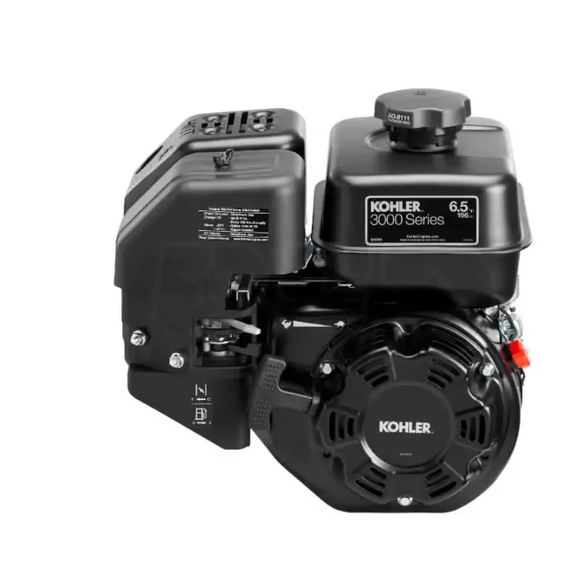

Kohler Engine 6.5 HP  SH265-3011 Replacement Tiller Engine

Kohler Engine 6.5 HP SH265-3011 Replacement Tiller Engine

  • $245.00
    Unit price per
  • Save $80.99
Shipping calculated at checkout.


Kohler Engine SH265-3011 Replacement Tiller Engine

Features

  • Model# SH265-3011, 3/4" x 2.42" Crankshaft, Tapped 5/16"-24
  • For use on utility equipment like pressure washers, log splitters, chippers, vacs, etc...
  • Professional-Grade Features For The Consumer
  • Overhead valve design provides better fuel efficiency and cleaner emissions
  • KOHLER SH265 Single Cylinder Air-Cooled 4-Cycle Horizontal Gas Engine
  • Produces 10.2 lbs./ft. peak torque- Power levels are stated gross torque per SAE J2003
  • Engine Starting Nearly Effortless
  • Large indexable recoil starter and dual ball bearings
  • Automatic compression release
  • Oversized Muffler For Reduced Noise
  • Sound-deadening alloy crankcase
  • Silenced air intake
  • Easy Acess Throttle, Choke, Shutoff Contol Lever
  • No tools required air cleaner
  • Automatic Low-Oil Engine Shutdown System
  • Dual drains for easy oil changes
  • Dipstick on fuel tank side
  • Extended Run Times
  • Large metal fuel tank
  • Basin shaped combustion chamber
  • Large Displacement
  • High-inertia flywheel

SPECS

Engine Series
SH Series
Engine Style
Horizontal
Engine Type
4-Cycle OHV
Cylinders
1
Cooling System
Air
Dry Weight
40 Lbs
CC
196 CCs
HP
6.5 HP
Max Torque
10.2 Lbs
Cylinder Bore Type
Cast Iron
Bore
2.7 Inches
Stroke
2.1 Inches
Compression Ratio
8.5:1
CARB
Yes
Systems
Starting System
Recoil Only
Ignition System
Electronic Spark
Lubrication
Lubrication
Splash
Oil Capacity
20 oz
Intake/Exhaust
Fuel
Gas
Muffler
Included
Air Cleaner
Dual Element
Fuel Tank Size
1 Gallon
Fuel Tank
Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
3/4 x 2.42 Inches
Crankshaft Type
Straight
Crankshaft Diameter
3/4"
Crankshaft Length
2.42"
Crankshaft End Tapped Size
5/16"-24
Crankshaft Keyway Width
3/16 Inches
PTO Height
4-11/64 Inches
Overview
Weight
40 Pounds
Consumer Warranty
2 Years
Commercial Warranty
90 Days
Product Width
14.4 Inches
