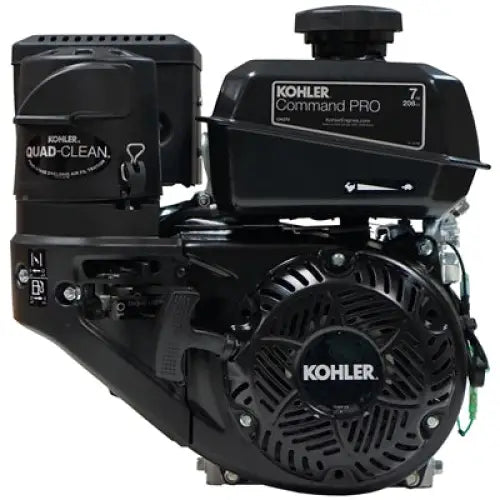

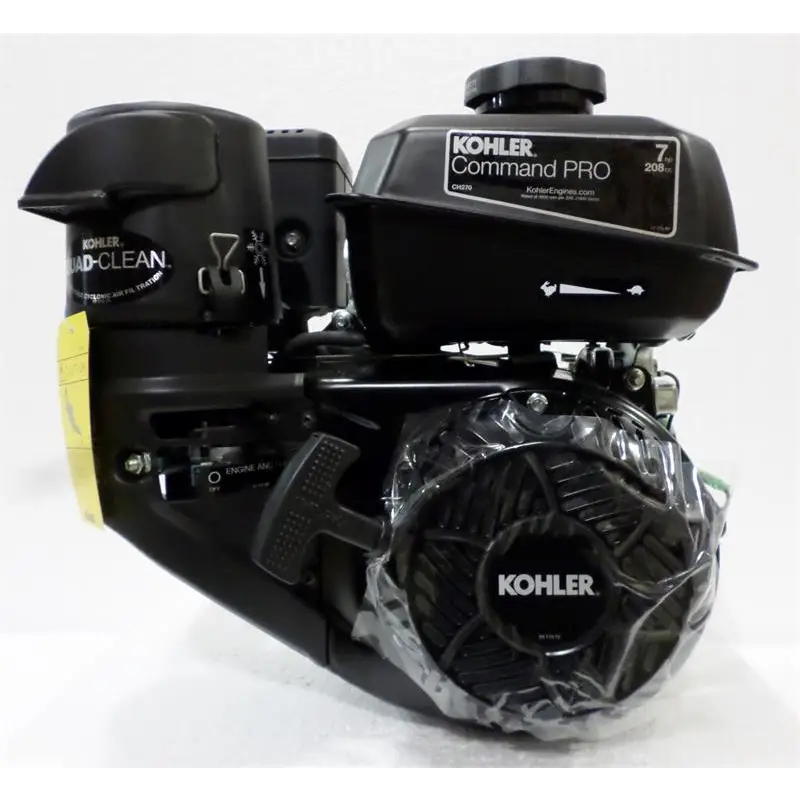

Kohler Engine 7 HP PA-CH270-3152 Command Replacement Tiller Engine

  • $325.99
    Unit price per
  • Save $74
Shipping calculated at checkout.


Kohler Engine 7 HP Command Pro, CH270-3152, 208cc, 3/4" Crankshaft

 Good replacement for Troy Bilt Tiller Pony and Horse models, Free Shipping, No Tax.

Features

  • Overhead Valve Design, Dual Ball Bearings, Cast-Iron Cylinder Bore, Electronic Ignition, Quad-Clean 4-Stage Heavy-Duty Cyclonic Air Cleaner-

    • No Tools Required All Season Air Cleaner
    • Interference Free PTO Face
    • High-inertia Flywheel
    • Stellite Faced Exhaust Valve
    • Water Trap to Separate Moisture in Fuel
    • Dual Oil Fills and Drains
    • Steel-forged crankshaft
    • Automatic compression release
    • Oil Sentry Automatic Low Oil Engine Shutdown System
    • Mechanical Governor
    • Carburetor Bowl Drain
    • Large metal fuel tank and chrome plated cap
    • Warm air intake system for cold weather operation
    • Indexable, Eazy Pull Retractable Starter
    • Oversized Muffler with Heat Shield
    • Easy Access Throttle, Choke and Shutoff

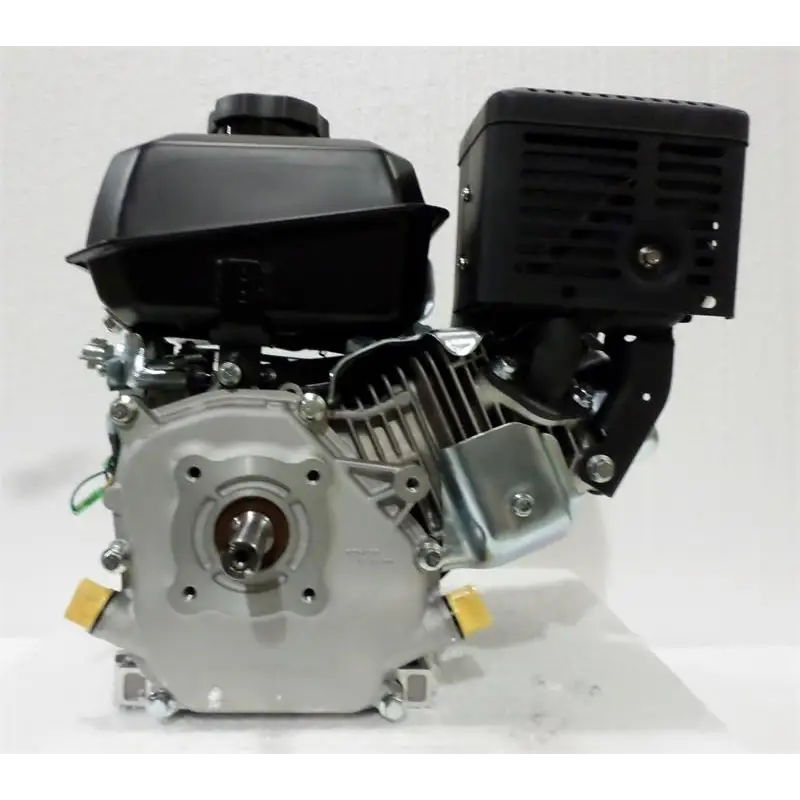

    Crankshaft-3/4" 0.75" (19.05 mm) Diameter x 2.42" (61.47 mm) PTO Length, 3/16" (4.7 mm) Keyway,
     Drilled and Tapped   0.67 in (17.01 mm) Deep, 5/16-24 UNF,
    PTO Face-3.625" (92.08 mm) Diameter, (4 Holes) 5/16-24 UNF-2B Thread 0.55 in (13.97 mm) Deep,

SPECS

4-cycle, gasoline, OHV, cast iron cylinder liner, aluminum block

Model Command PRO CH270
HP (kW) 1 7(5.2)
Displacement (cc) 12.7 (208)
Bore in (mm) 2.8 (70)
Stroke in (mm) 2.1 (54)
Gross Torque ft lbs (Nm) 1 10.5 (14.2)
Compression Ratio 8.5:1
Dry Weight lbs (kg) 38.7 (17.5)
Oil Capacity US qts (L) 0.63 (0.6)
Lubrication Splash
Dimensions LxWxH (in)* 12.7 x 15.2 x 14.2
Backpressure Limit 2 30
Certified Power HP (kW) 3 6.6 (4.9)
Certified RPM 4000
Engine Type Commercial
  • Model: PACH270-3152
  • UPC: 885612358271
  • Shipping Weight: 48lbs
  • Manufactured by: Kohler
